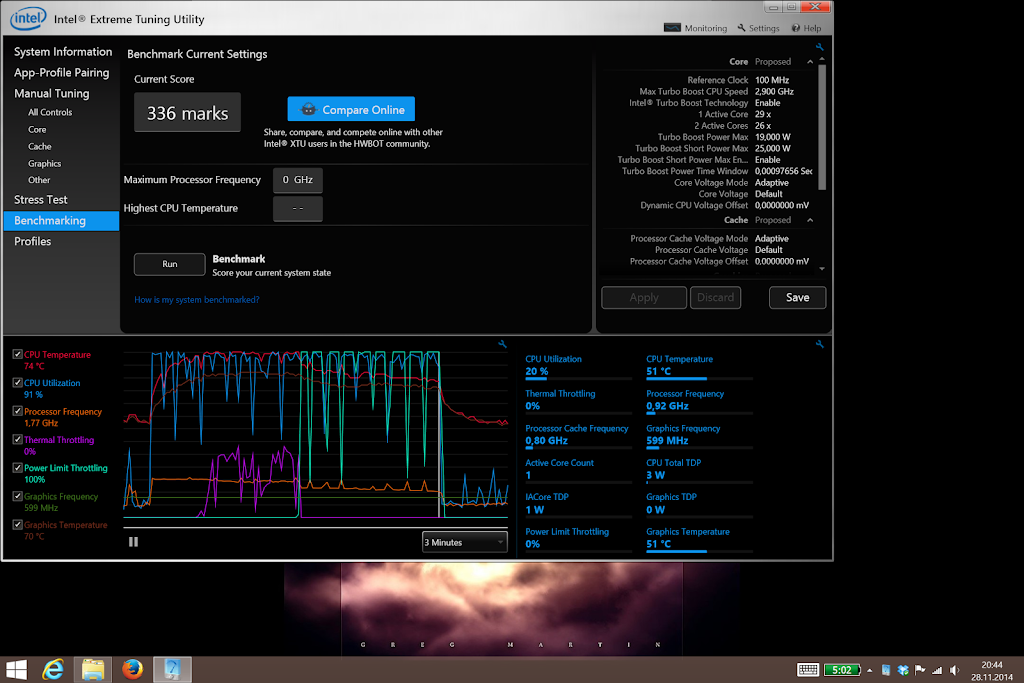

btw: here are two tests i made.
The first one is totally normal.
and the 2nd one is with the bigges heathsink you can imagine xD a huge Granite block.
Haldi
Member
Nekroing this Thread here for my benefits

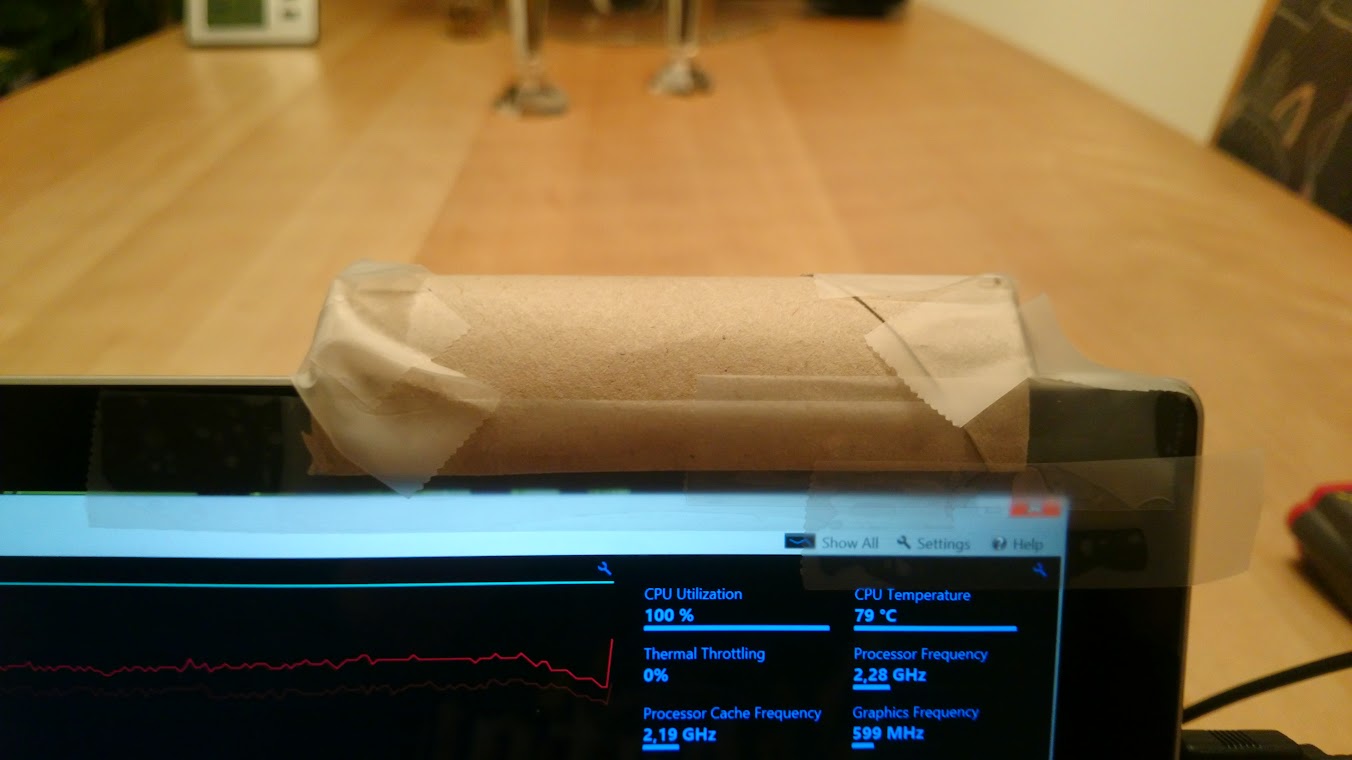

So i've got this fan from China and did a few tests.
It may look hillarious but for testing it works xD
made some stress test's with Prime95 and Furmark.

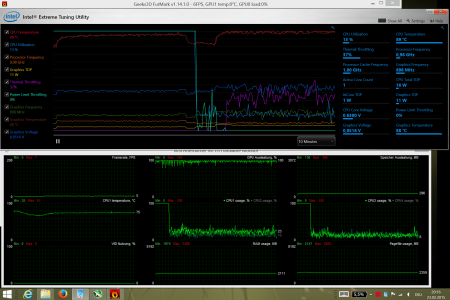

The first graph is fully stock (with an aluminum cover foil from iCarbon)
In this graph you can clearly see the Thermal Limit and 90°C CPU temp. After that the Power Limit kicks in and the CPU clock goes down to 1.3ghz, ends up on 1.6ghz after 10 mins.
The back of the case got 45°C hot (Laser thermometer 4tw)

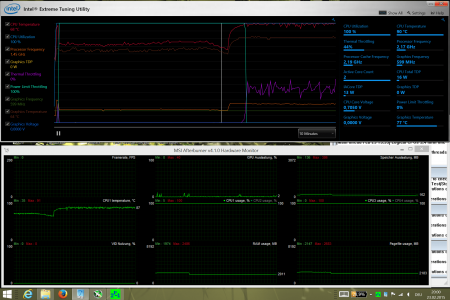

The 2nd Graph was made after i attached the Fan (as seen in the picture above)
i did NOT stop Prime95 in this process, i simply added the fan, you can see the power limit droppping and the power limit rising! CPU clock jumps up to 2.2ghz and 90°C CPU temp. instead of 8w the cores now use 13W ! Back of the case dropped to 37°C Temperature.
After this i tought it would be funny to run FurMark an prime95 together^^

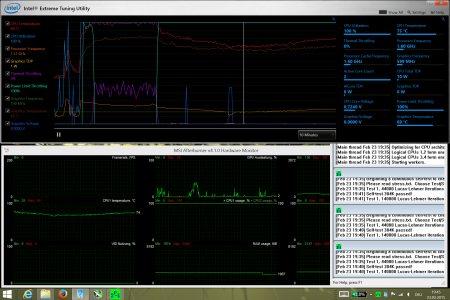

Well yeah, wasn't funny..... Prime95 has low CPU priority. CPU freq dropped to 1.1ghz and Power Limit Throttling is back Backside temp dropped again to 34°C
So close Prime95 and do Furmark Only!
Thermal Throttling is back, GPU clock is about 900mhz jumping up and down around the 90°C ^^ and the GPU draws 11W. Backside stays on 34°C
How much Performance does that make?
Well i also ran 3D Mark Sky Diver Benchmarks!
at first i tried with CLoud Gate, but sadly that benchmark could not get my surface hot enough in one Benchmark...
i ran 3 Cloud Gate Benchmarks and the Score dropped from 4521 to 4497 to 4273 therefore i switched to Sky Diver Benchmark Even tough Frames are horribly low.
All Benchmarks are made on Battery Mode with Maximum Screen Brightness!
On a Normal Stock Surface Pro 3 (with iCarbon Aluminum foil cover!) i made 3 runs to get a score of:
1854 | 1780 | 1761

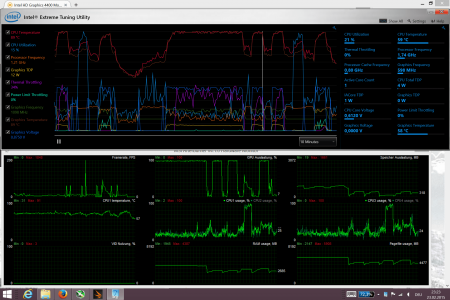

and here the graphs for the last run:
With the additional Fan (which makes about same the noise as stock fan on maximum power) i got:
2476 | 2549 | 2499 | 2553

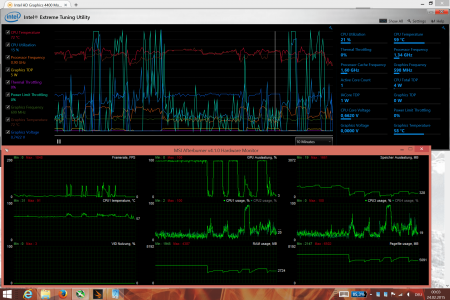

And just look at this beautiful graph! The GPU is giving it's all and can now use 11W instead of 5W!
because i was really curious i also applied my undervolted Profile which is:
CPU -50mV
Cache -120mV
GPU -70mV
And whow.. that sure gave a performance boost! Especially with the extra cooling you can see a nice boost from undervolting!
2766 | 2772 | 2765 | 2766

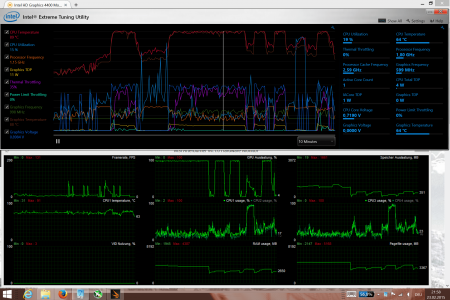

Graph here:
If you take a close look at the detailed score you can see that Undervolting bring mainly benefits in the GPU, because thanks to a colder CPU and GPU it can clock higher.
That's it with testing from my side.
I'll make some new tests (mainly Furmark i'll think) when the other fan's arrive. (i've ordered about 5 pieces for 15$ from aliExpres xD )
The subject about Fan noise and Powerdrain will also be included then.
So i've got this fan from China and did a few tests.
It may look hillarious but for testing it works xD
made some stress test's with Prime95 and Furmark.
The first graph is fully stock (with an aluminum cover foil from iCarbon)
In this graph you can clearly see the Thermal Limit and 90°C CPU temp. After that the Power Limit kicks in and the CPU clock goes down to 1.3ghz, ends up on 1.6ghz after 10 mins.
The back of the case got 45°C hot (Laser thermometer 4tw)
The 2nd Graph was made after i attached the Fan (as seen in the picture above)
i did NOT stop Prime95 in this process, i simply added the fan, you can see the power limit droppping and the power limit rising! CPU clock jumps up to 2.2ghz and 90°C CPU temp. instead of 8w the cores now use 13W ! Back of the case dropped to 37°C Temperature.
After this i tought it would be funny to run FurMark an prime95 together^^
Well yeah, wasn't funny..... Prime95 has low CPU priority. CPU freq dropped to 1.1ghz and Power Limit Throttling is back
Backside temp dropped again to 34°CSo close Prime95 and do Furmark Only!
Thermal Throttling is back, GPU clock is about 900mhz jumping up and down around the 90°C ^^ and the GPU draws 11W. Backside stays on 34°C
How much Performance does that make?
Well i also ran 3D Mark Sky Diver Benchmarks!
at first i tried with CLoud Gate, but sadly that benchmark could not get my surface hot enough in one Benchmark...
i ran 3 Cloud Gate Benchmarks and the Score dropped from 4521 to 4497 to 4273 therefore i switched to Sky Diver Benchmark Even tough Frames are horribly low.
All Benchmarks are made on Battery Mode with Maximum Screen Brightness!
On a Normal Stock Surface Pro 3 (with iCarbon Aluminum foil cover!) i made 3 runs to get a score of:
1854 | 1780 | 1761
and here the graphs for the last run:
With the additional Fan (which makes about same the noise as stock fan on maximum power) i got:
2476 | 2549 | 2499 | 2553
And just look at this beautiful graph! The GPU is giving it's all and can now use 11W instead of 5W!
because i was really curious i also applied my undervolted Profile which is:
CPU -50mV
Cache -120mV
GPU -70mV
And whow.. that sure gave a performance boost! Especially with the extra cooling you can see a nice boost from undervolting!
2766 | 2772 | 2765 | 2766
Graph here:
If you take a close look at the detailed score you can see that Undervolting bring mainly benefits in the GPU, because thanks to a colder CPU and GPU it can clock higher.
That's it with testing from my side.
I'll make some new tests (mainly Furmark i'll think) when the other fan's arrive. (i've ordered about 5 pieces for 15$ from aliExpres xD )
The subject about Fan noise and Powerdrain will also be included then.
